Fast delivery Automatic Sealing Machine - Automatic small bottle perfume factory price filling capping machine – Ipanda Detail:

Automatic perfume filling and capping machine

Overview:

This machine is auto negative pressure vacuum filling, auto bottle detecting( no bottle no filling )

Auto dropping of crimp pump cap, circulation of spray bottles’ die set, It is wide adaptability which can meet to requirements of different dimension and filling volume of containers.

This filling machine can be divided into automatic bottles feeding (Also can use choose manual load bottle)automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc.

Features:

1 All electrical control is in accordance with international standards, the main components are imported components, frequency control, and the running speed is continuously adjustable.

2.  filling volume used intelligent control , screen touch can writing filling capacity then our filling machine can filling it , difference bottle capacity ,you can set different filling volume ,

it’s very easy to operation not change parts .

3. Special anti-drip filling head, better anti-drip effect and accurate loading.

4. no bottle no filling, no spray nozzles , no bottle no capping and no bottle shutdown.

Parameters:

Applied Bottle 5-200ml customized
Productive Capacity 30-100pcs/min
Filling Precision 0-1%
Qualified stoppering ≥99%
Qualified cap putting ≥99%
Qualified capping ≥99%
Power Supply 380V,50Hz/220V,50Hz (customized)
Power 2.5KW
Net Weight 600KG
Dimension 2100(L)*1200(W)*1850(H)mm

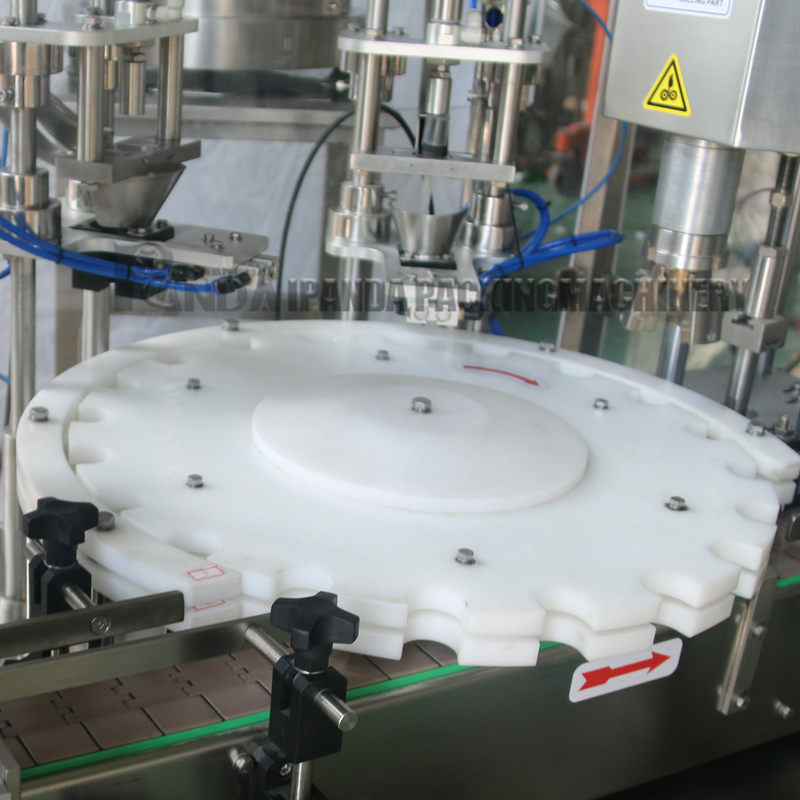

Rotary table

No bottle no filling

No cap auto stop, easy for trouble shooting

No air machine alarm.

perfume filling 2

Multiple parameters setting for different caps

Filling system

lt can achieve automatic stopping when bottles are full, and automatic starting when bottles are lacked on the belt conveyor.

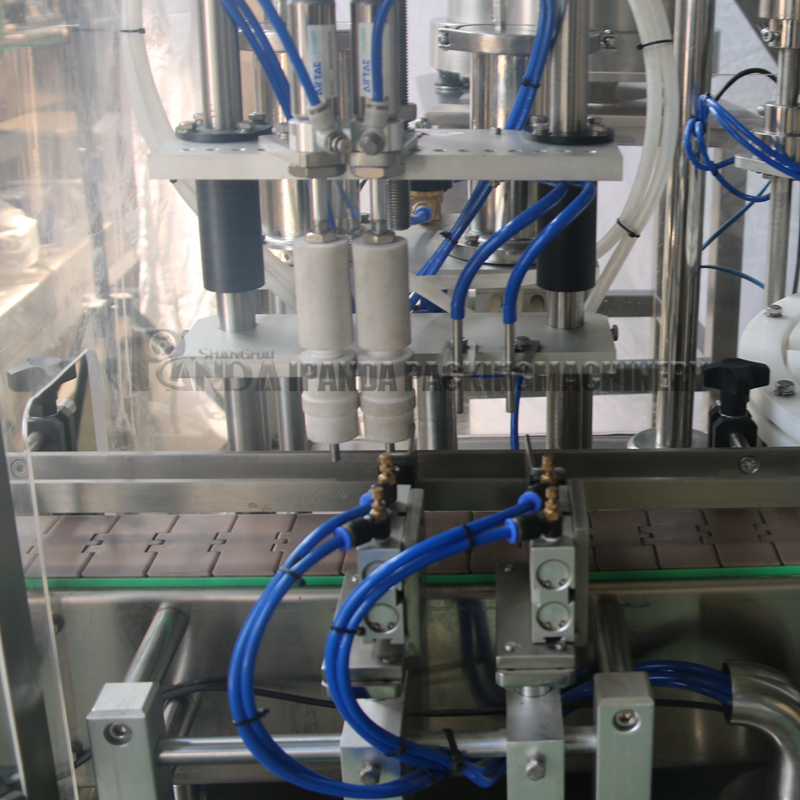

Filling head

Our filling head have 2 jackets  You can see the filling split connect with 2 pipes.The outside jacket connect with vacuum suction air pipe.The inner jacket connect with filling perfume material pipe.

perfume filling 1

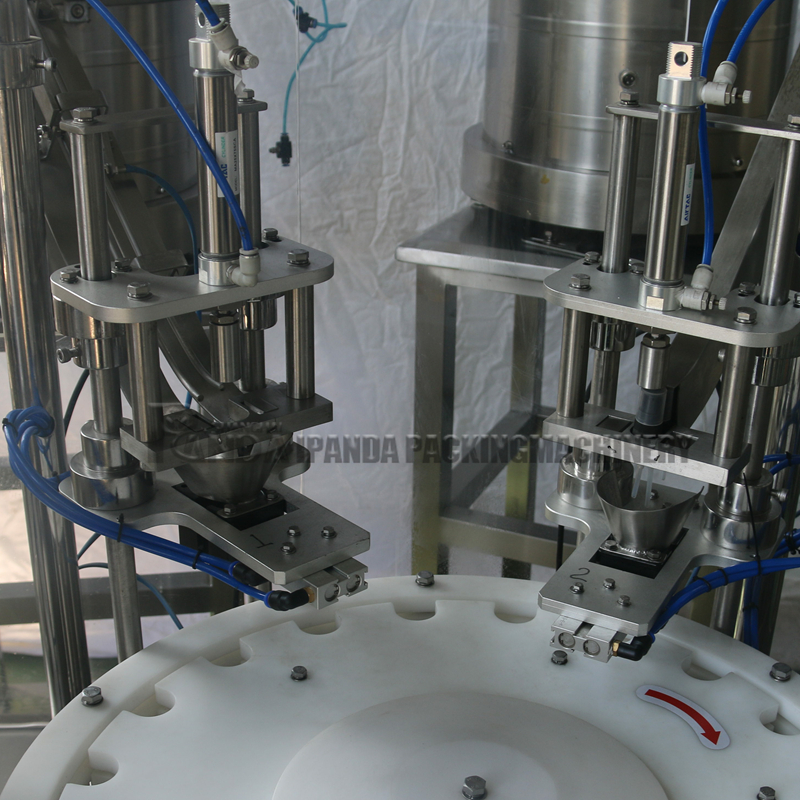

Capping station

Capping head all will customize according to customer different cap.

perfume filling 3

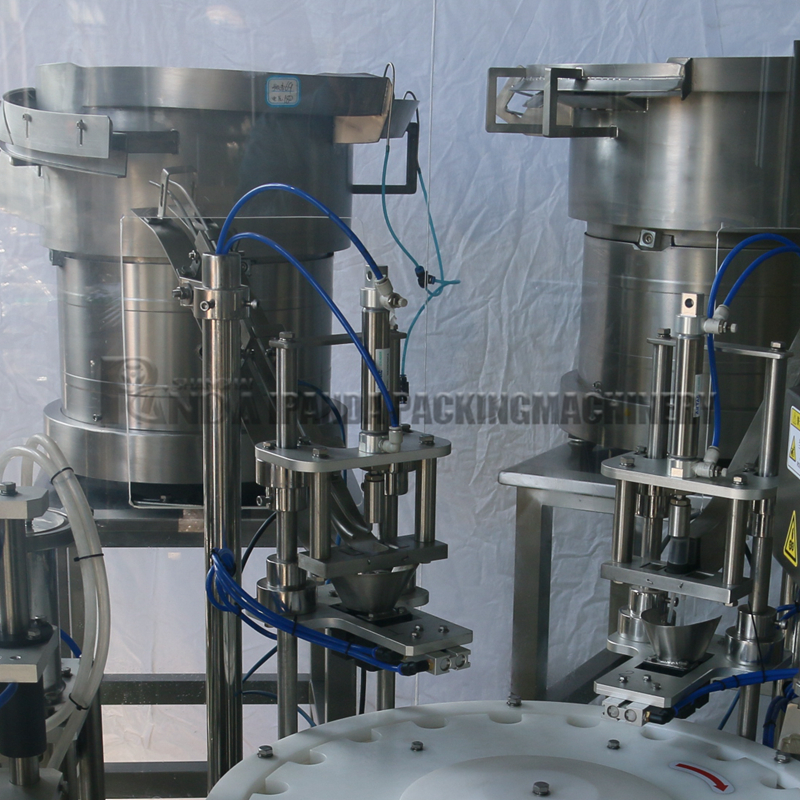

Adopt Cap Unscrambler,it’s customized according to your caps and inner plugs

perfume filling 5


Product detail pictures:

Fast delivery Automatic Sealing Machine - Automatic small bottle perfume factory price filling capping machine – Ipanda detail pictures

Fast delivery Automatic Sealing Machine - Automatic small bottle perfume factory price filling capping machine – Ipanda detail pictures

Fast delivery Automatic Sealing Machine - Automatic small bottle perfume factory price filling capping machine – Ipanda detail pictures

Fast delivery Automatic Sealing Machine - Automatic small bottle perfume factory price filling capping machine – Ipanda detail pictures

Fast delivery Automatic Sealing Machine - Automatic small bottle perfume factory price filling capping machine – Ipanda detail pictures

Fast delivery Automatic Sealing Machine - Automatic small bottle perfume factory price filling capping machine – Ipanda detail pictures
