Auto Face Lotion Cream Cosmetic Cream Tube Filling Machine

short description:

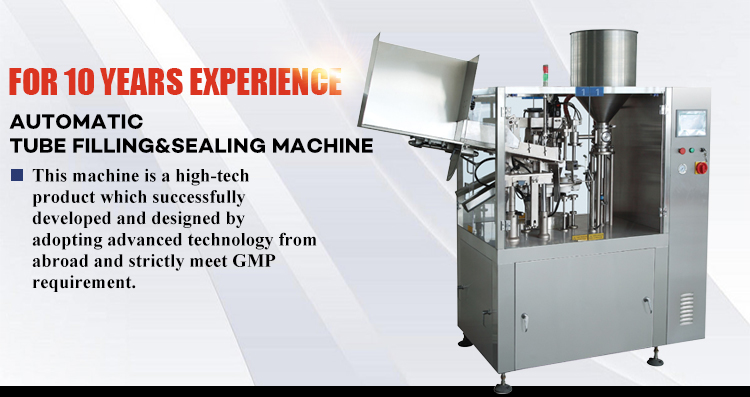

Aluminum Tube Filling and Sealing Machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plumbum tube, plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

This is automatic tube filling sealing machine video


Product Detail

Product Tags

Product Display

automatic tube filling machine (3)
automatic tube filling machine (5)
automatic tube filling machine (1)

Overview

The automatic plastic tube filling and sealing machine can load tube automatically, benchmarking automatically, filling automatically and Swiss sealer internal heating, chiller external cooling automatically, tail sealing automatically, code pressing automatically, edge trimming automatically, and finished product exit automatically.

Parameter

Model
SHPD-60A
Power Supply
220V/380V 50Hz/60Hz
Power Rate
4.5KW (9.5KW with hopper heating)
Air pressure
0.6-0.7MPa
Filling Range
5-250ml
Filling Precision
≤±1
Filling capacity
40-60pcs/min
Tube Diameter
13-50mm
Dimension
1900mm×1000mm×1800mm
Weight
800kg

Machine configuration

Frame

SUS304 Stainless steel

Parts in contact with liquid

SUS316L Stainless steel

Electrical parts


Pneumatic part


Features

(1)With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.


(2)Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).


(3)Servo control makes it precise and convenient to adjust the filling amount by touch screen.

(4)According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

(5)The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

(6)Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm.when low pressure occurs. The machine stops automatically if tube error or open the safety door.

(7)Three-layer jacket instant heater with inside air heating, it won't damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

The Machine Details

The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.

tube filling machine (2)
