glass plastic e-liquid customized design automatic factory price filling machine

short description:

We focus on producing various kinds of filling production line for different products, such as the capsule, liquid, paste, powder, aerosol, corrosive liquid etc, which are widely used in different industries, including food/beverage/cosmetics/petrochemicals etc. Our machines are all customized according to customer’s product and request. This series of packaging machine is novel in structure, stable in operation and easy to operate.Welcome new and old customers letter to negotiate orders, the establishment of friendly partners. We have customers in Unites states, Middle east, Southeast Asia, Russia etc. and have gained good comments from them with the high quality as well as good service.

The talent team of Ipanda Intelligent Machinery Garhers product experts,sales experts and after-sales service staffs,and upholds the business philosophy of “High performance, Good service,Good prestige”.Our engineers are responsible and professional with more than 15 years experience in the industry.We will according to your product samples and filling material return the real effect of packing Until the machine work well ,we will not ship it to your side.Aimed at offering high level products to our customers, we adopt the SS304 material, reliable components for the products. And all the machines have reached CE standard. Overseas after-sales service is also available, our engineer has gone for many countries for service support. We are always striving to offer high quality machines and service to customers.

Why Choose Us

l Dedication to Research & Development

l Experienced Management

l Better understanding of Customer requirement

l One Stop solution provider with Broad Range Offering

l We can supply OEM&ODM design

l Continuous Improvement with Innovation



This is a video about the e-liquid filling machine


Product Detail

Product Tags

e-liquid filling (1) e-liquid filling (2) e-liquid filling (3) e-liquid filling (4) e-liquid filling (5) plc pump



Function:

1.This machine is simple and easy to operate, error correction, adjustment, cleaning and maintenance.

2.With automatic conveying, automatic filling, no bottle no filling.

3.Positioning of jammed bottles, preventing dripping, lifting filling and other functions. Can be equipped with protective cover.

4.The material contact part adopts 304 stainless steel.

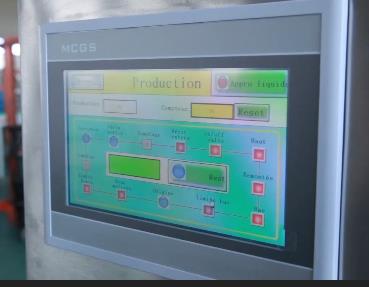

Touch screen can be showed in English,Spanish,Rassina,Italian



and others language,can be customized according to your requirement.

Main parameter of the machine

Name  Filling capping machine Filling volume 5-250ml,can be customized
Net weight 550KG Filling heads 1-4 heads,can be customized
Bottle diameter Can be customized Filling speed 1000-2000BPH,can be customized
Bottle height Can be customized Voltage  220V,380V ,50/60GZ
Filling accuracy  ±1ml Power 1.2KW
Bottle material  Glass ,plastic bottle Working pressure  0.6-0.8MP
Filling material  Eye drop,e-liquid,cbd oil Air consumption 700L per hour

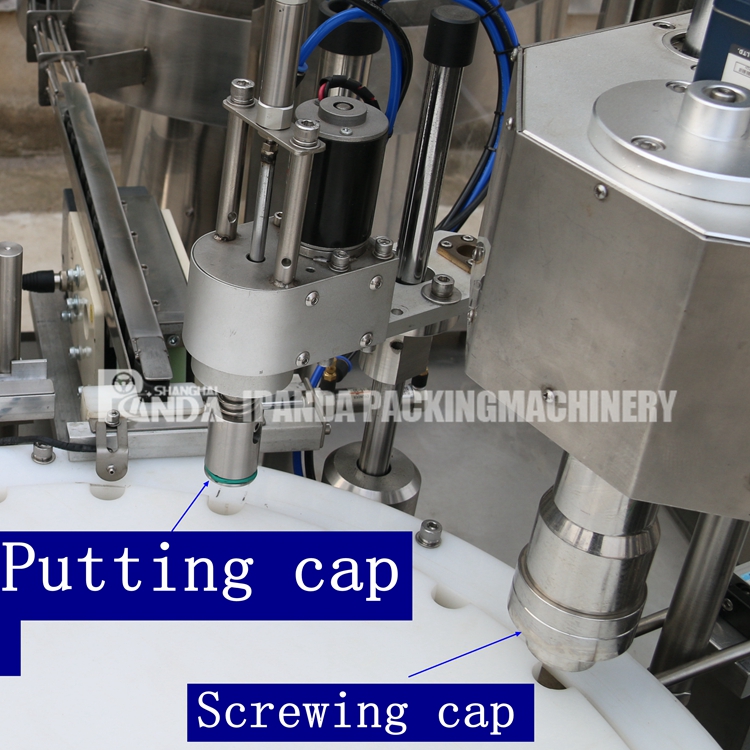

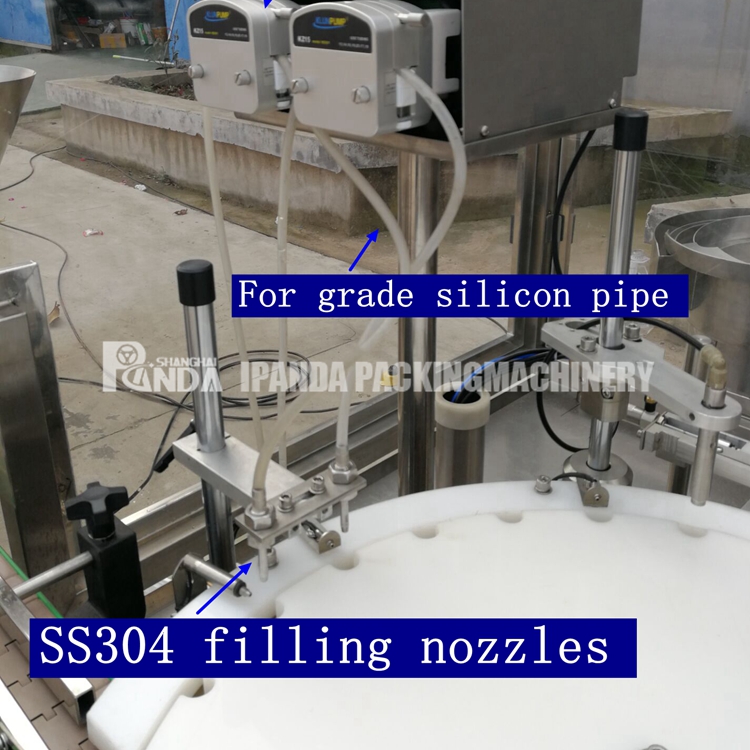

Filling part of the machine can be used 316L stainless steel injection pump filling, PLC control, high filling accuracy, easy to adjust the scope of the filling, capping method using constant torque capping, automatic slip, capping process does not damage material, to ensure the packing effect. It is suitable for products of liquid such as essential oil, eye drop,nail polish etc. It is widely applied for filling of products in such industries as food, cosmetics, medicine, grease, daily chemical industry, detergent etc.The machine design is reasonable, reliable, easy to operate and maintain, in full compliance with GMP requirements.
